LASER CLADDING

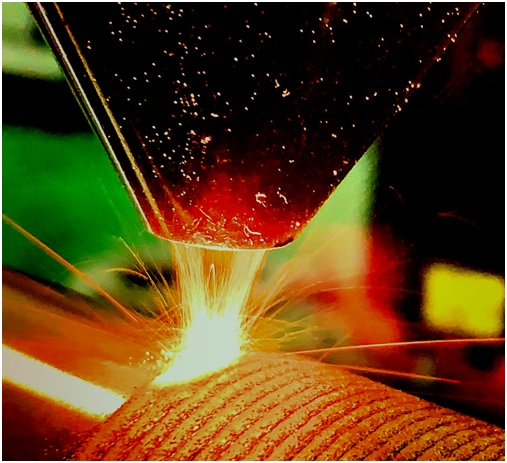

We have been developing laser- cladding services for a variety of applications in different industries, ranging from medical parts to gas turbine components. Due to its superior focusing ability, lasers allow power densities that are not typically possible with conventional thermal procedures. This enables us to process components with minimal thermal loading and distortion. Laser cladding is particularly suitable for applications demanding a high dimensional accuracy. Additional applications include materials that are difficult to weld using conventional methods, such as high temperature-resistant nickel-based alloys in gas turbines or tungsten-carbide-filled wear-protection coatings. Typical components include turbine blades, drilling equipment, and pump components.

Applications

Oil & Gas

  • Plug Valves
  • Gate valves
  • Disc valves or Wedge valves
  • Ball valves
  • Seat rings-Tapered surface

Power ( Turbines & Thermal plants)

  • Throttle valves
  • Long Headed plug valves & seat’s
  • Coal spray baffle plates & nozzle

Pump’s

  • Channel Rings
  • Cross over bushing
  • Pump sleeves

Plastic extrusion mold industry

  • Single screw extruder
  • Twin screw extruder
  • Single & Twin Barrel

Laser Cladding on applications-In house

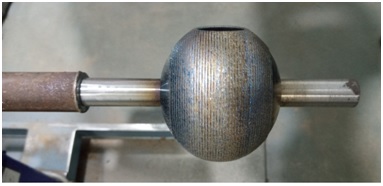

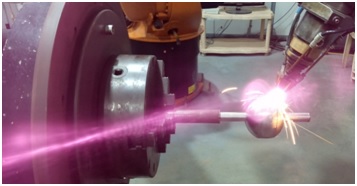

Laser Cladding on Ball valve


Cladding Details:

  • Coating material is Stellite#6/21/12
  • Base metal is 316/SS 410
  • Thickness achieved is 2.2 mm/side
  • After DP check there is no relevant indications on the cladded surface
  • Hardness achieved 42 to 45 HRC

Laser Cladding on Trottel valve for Turbines


Cladding Details:

  • Coating material is Stellite#6
  • Base metal is 20CrMoV5-7/21CrVMo7
  • Thickness achieved is 2.2 mm/side
  • After DP check there is no relevant indications on the cladded surface
  • Hardness achieved 42 to 45 HRC

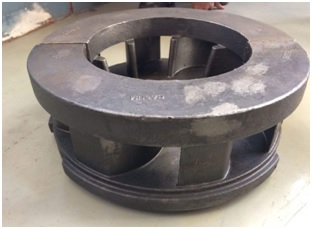

Laser Cladding on Channel rings for Pump’s


Cladding Details:

  • Coating material is SS 420
  • Base metal is CA6NM
  • Thickness achieved is 2.2 mm/side
  • After DP check there is no relevant indications on the cladded surface
  • Hardness achieved 52-54 HRC

Laser Cladding on Wedge or Disc valves


Cladding Details:

  • Coating material is Stellite#6
  • Base metal is Inconel 625/825
  • Thickness achieved is 2.2 mm/side
  • After DP check there is no relevant indications on the cladded surface
  • Hardness achieved 42 to 45HRC
